Architecting a Home Data Science Workstation: Beyond the Spec Sheet

The process of architecting a data science workstation for home use is often fraught with frustration. You invest significant funds and time, meticulously selecting what you believe are the best components, only to be met with random crashes during a long training run or inexplicable dependency conflicts that derail an entire project. The common advice—”get the most powerful GPU” or “more cores are better”—oversimplifies a complex engineering challenge and frequently leads to an imbalanced and unstable system.

This approach, focused on maximizing individual component specifications, ignores the critical interplay between hardware and software. It fails to account for the systemic bottlenecks that truly limit performance and reliability. The reality is that a high-end CPU is useless if the power supply cannot handle the GPU’s transient loads, and a top-tier GPU is hamstrung by poorly managed software environments. These are the points of failure that professional infrastructure architects obsess over.

This guide offers a different perspective. Instead of a simple shopping list, we will explore the architectural principles of building a stable, cost-effective deep learning rig. We will move beyond the spec sheet to understand the “why” behind component choices, focusing on achieving an architectural balance that ensures every part of your system works in concert. We will dissect specific, non-obvious failure points—from power delivery to software hygiene—that are the true enemies of productivity for a home-based researcher.

By following these principles, you will learn to think like an infrastructure architect, enabling you to build a machine that is not only powerful on paper but resilient and reliable in practice. This article provides a structured path to understanding these critical subsystems, from memory and storage fundamentals to the nuances of power delivery and CPU selection.

Why 64GB of RAM Is the New Minimum for Local LLM Compilation?

For years, 32GB of RAM was the comfortable standard for a data science workstation. However, the recent explosion in the size and accessibility of Large Language Models (LLMs) has fundamentally shifted this baseline. Attempting to load, fine-tune, or even just perform inference with models like Llama 3.1 70B on a 32GB machine is no longer just slow; it’s often impossible. The new functional minimum for any serious home research involving modern LLMs is 64GB of system RAM. This isn’t a luxury, but a necessity driven by the memory footprint of the models themselves, even with optimization.

The core of the issue is the model’s weight and its state during computation. A 70-billion-parameter model, even when quantized to reduce its size, requires a substantial amount of VRAM and system RAM to operate. Quantization techniques, which reduce the precision of the model’s weights (e.g., from 16-bit floating point to 4-bit integers), make it possible to run these models on consumer hardware, but the memory demands remain significant. This threshold is based on an analysis of hardware requirements for deploying local LLMs, showing that 70B parameter models require around 35GB of memory even at an aggressive Q4 quantization.

When you account for the operating system’s memory usage, the development environment, and the data itself, a 32GB system is immediately overwhelmed. A 64GB system provides the necessary headroom to not only load the model but also to handle the data batches and intermediate computations without resorting to slow disk swapping, which would cripple performance. For anyone aspiring to experiment with state-of-the-art open-source LLMs locally, architecting a system around a 64GB RAM foundation is the first critical step toward a capable machine.

This table illustrates how memory requirements scale dramatically with model size and precision, making 64GB a safe and necessary baseline for working with 70B-class models.

How to Partition Your Drive for a Stable Linux Data Science Environment?

A stable system is a productive system. In the context of a Linux-based data science workstation, stability begins at the most fundamental level: disk partitioning. A poorly planned partition scheme can lead to a brittle environment where a failed driver update can corrupt the entire OS, or where user data is intermingled with system files, making backups and recovery a nightmare. A professional approach involves creating logical separations that isolate components, protecting the system’s integrity and the user’s valuable work.

The primary architectural principle is the separation of concerns. Your operating system, your user files (including datasets and models), and your temporary swap space should not reside on the same partition. The most robust strategy involves dedicating a separate physical NVMe drive or, at a minimum, a distinct partition for the `/home` directory. This isolates all your personal configurations, code, and large datasets from the root filesystem. If you ever need to reinstall the OS, your entire work environment in `/home` remains untouched—a massive time-saver.

Furthermore, the choice of filesystem can add another layer of resilience. While `ext4` is the reliable default, using a more advanced filesystem like BTRFS for the system partition grants access to powerful features like snapshots. Before a potentially risky operation, such as updating NVIDIA drivers, you can take an instantaneous snapshot of the entire system. If the update fails, you can roll back to the pre-update state in seconds, transforming a potentially catastrophic failure into a minor inconvenience. This level of control is a hallmark of a professionally architected environment.

CUDA vs OpenCL: Which Ecosystem Offers Better Support for Home Research?

The choice of GPU for a deep learning workstation extends far beyond raw teraflops; it’s a commitment to an entire software ecosystem. For the home researcher, this decision primarily boils down to NVIDIA’s proprietary CUDA (Compute Unified Device Architecture) versus the open-standard alternatives, most notably AMD’s ROCm (Radeon Open Compute). While the allure of open-source and potentially lower hardware costs with ROCm is strong, the reality for most users is that CUDA maintains a significant advantage in maturity, stability, and breadth of support.

The primary differentiator is ecosystem friction. CUDA is the de facto industry standard. Virtually every major deep learning framework, from TensorFlow and PyTorch to specialized libraries, is developed and optimized for CUDA first. This means tutorials, documentation, pre-trained models, and community support are overwhelmingly geared towards NVIDIA hardware. For a student or researcher on a budget—where time is as valuable as money—this translates to less time spent troubleshooting and more time doing actual research. A recent comparative analysis shows a 10-30% performance lead for CUDA in most common machine learning tasks, but the true advantage lies in its seamless integration.

This abstract visualization depicts the choice as a divergence of paths: one well-trodden and polished, the other more foundational and raw, requiring more effort to traverse.

While ROCm has made significant strides and is a viable platform for those with the specific expertise and willingness to tackle potential compatibility issues, it introduces an engineering overhead that many cannot afford. As the ThunderCompute Research Team notes in their “ROCm vs CUDA: Which GPU Computing System Wins in April 2026?” report:

ROCm offers open-source flexibility, lower hardware costs, and fewer vendor lock-in risks, but typically requires more engineering expertise.

– ThunderCompute Research Team, ROCm vs CUDA: Which GPU Computing System Wins in April 2026?

For the home builder optimizing for productivity and stability, the path of least resistance is clear. Choosing CUDA is not just a hardware decision; it is an architectural choice that prioritizes the vast resources and stability of a mature ecosystem, minimizing the risk of getting bogged down by platform-specific issues.

The Transient Power Spike That Shuts Down AI Workstations Randomly

One of the most maddening issues for anyone running intensive AI workloads is the random system shutdown. The screen goes black without warning, often hours into a training job, with no blue screen or kernel panic log to indicate the cause. The user blames the OS, the drivers, or a faulty component, but the real culprit is often more subtle and insidious: the transient power spike. Modern high-end GPUs, especially under the fluctuating loads of deep learning, can draw massive amounts of power for microseconds. These spikes, while brief, can be double the card’s rated TDP (Thermal Design Power).

If the Power Supply Unit (PSU) is not designed to handle these instantaneous demands, its Over-Current Protection (OCP) or Over-Power Protection (OPP) circuitry will trigger, shutting the system down to protect itself. This is not a faulty PSU; it’s a PSU correctly identifying a power draw that exceeds its safety limits. The problem lies in selecting a PSU based solely on its total wattage rating without considering its transient response capability. A cheaper 1000W PSU may be less capable of handling a 300-millisecond spike than a high-quality, well-engineered 850W unit with robust capacitors and modern topology.

Diagnosing this requires monitoring tools like HWiNFO64 to log GPU power draw in real-time. By correlating the timestamp of a crash with a power spike in the logs, you can confirm that transient loads are the cause. The issue can be further compounded by the motherboard’s Voltage Regulator Modules (VRMs). Weak VRMs can sag under the sudden load, contributing to instability even with an adequate PSU. From an architectural perspective, the power delivery subsystem (PSU and motherboard VRMs) must be viewed as a single unit designed to service the GPU’s peak, not average, demands. For a budget-conscious builder, this means allocating a disproportionate amount of the budget to a high-quality PSU from a reputable brand (with 80 Plus Gold or higher certification) is a non-negotiable investment in system stability.

As a short-term mitigation, one of the most effective strategies is to apply a power limit to the GPU using tools like NVIDIA’s control panel or MSI Afterburner. A modest 90% power limit can drastically reduce the intensity of these spikes with a minimal, often unnoticeable, performance hit of only 2-5%. This is an excellent trade-off for achieving rock-solid stability during long computational tasks.

How to Configure Virtual Environments to Avoid Dependency Hell?

Hardware is only half of the equation. A perfectly architected machine can be rendered unproductive by a chaotic software environment. The infamous “dependency hell” arises when different projects require conflicting versions of the same library (e.g., Project A needs TensorFlow 2.8 while Project B requires 2.11). Attempting to manage these dependencies in a single, global Python installation is a recipe for disaster. The professional solution is strict isolation, achieved through a disciplined approach to dependency hygiene using virtual environments.

A virtual environment is a self-contained directory tree that includes a specific Python installation and all the additional packages required for a single project. This ensures that the dependencies for one project do not interfere with any others. The two dominant tools for this in the data science space are `venv`/`virtualenv` for lightweight, project-specific isolation, and Conda for more complex scenarios involving non-Python dependencies (like the CUDA Toolkit). For data science, Conda is often the superior choice due to its ability to manage the entire software stack in a coherent, reproducible way.

This concept of isolation is visualized below, where each transparent layer represents a self-contained environment, preventing any interference between them.

A robust workflow involves creating a new Conda environment for every distinct project. This environment is defined by a `environment.yml` file, which explicitly lists all required packages and their versions. This file becomes part of the project’s version control (e.g., Git), ensuring that any collaborator (or your future self on a new machine) can perfectly replicate the exact software environment with a single command (`conda env create -f environment.yml`). This practice elevates environment management from a manual, error-prone chore to a repeatable, automated, and architecturally sound process.

Intel E-Cores vs AMD Zen Architecture: Which Handles Background Rendering Better?

The CPU selection for a data science workstation is a nuanced decision, especially when balancing a budget. The debate often centers on core count, but the type of cores and their underlying architecture are far more significant. Intel’s modern hybrid architecture, featuring a mix of powerful Performance-cores (P-cores) and smaller Efficiency-cores (E-cores), presents a different paradigm from AMD’s Zen architecture, which typically offers a higher number of homogenous, high-performance cores. For a data scientist who is often multitasking—preprocessing data, running a training script, and managing the OS—the architectural differences have real-world implications.

Intel’s E-cores are specifically designed to handle background tasks and OS overhead efficiently, freeing up the P-cores to focus on the primary, demanding workload. In theory, this is ideal for a data science workflow. However, the OS scheduler’s ability to correctly assign threads to the appropriate core type is crucial and can sometimes be a point of friction. In contrast, AMD’s approach provides a large, uniform pool of powerful cores. This can be highly effective for massively parallel CPU-bound tasks like data transformation or traditional statistical modeling, a domain where professional workstation guidelines that recommend 32 cores as a baseline find their justification. For a budget home build, 16 cores is often cited as a minimum for serious work.

The choice hinges on the nature of your most common workloads. As data science expert Jeff Heaton notes in his analysis of workstation builds:

AMD offers more cores; however at a slightly reduced clock speed. Therefore, AMD will be more efficient on multi-threaded software. Intel will be more effective on less parallel software that benefits from a larger single-core speed advantage.

– Jeff Heaton, NVIDIA RTX A6000 Based Data Science Workstation

If your work involves many parallel, CPU-intensive preprocessing steps, an AMD CPU might offer better throughput. If your tasks are more single-threaded or you rely heavily on the GPU, an Intel CPU with high single-core clock speeds on its P-cores could be more beneficial. For most deep learning tasks, where the CPU’s primary role is to feed the GPU, the single-core performance of a few P-cores is often more critical than a high overall core count. This highlights the importance of architectural balance rather than simply chasing the highest number on a spec sheet.

TBW Rating vs Warranty Years: Which Metric Matters More for Data Safety?

In a data science workstation, the primary storage drive (typically an NVMe SSD) is more than just a place to store the OS; it’s a high-performance workhorse constantly subjected to read and write operations from large datasets, model checkpoints, and virtual memory swapping. The long-term reliability of this drive is paramount. When evaluating SSDs, consumers often focus on the warranty period in years, but for a data-intensive workload, a more critical metric is the Terabytes Written (TBW) rating. This figure represents the total amount of data that can be written to the drive before the NAND flash memory cells begin to degrade and fail.

The TBW rating is a direct measure of the drive’s endurance. For a standard user, a drive’s TBW is rarely approached. However, data science workloads can be exceptionally write-heavy. The constant loading of data batches, saving of model checkpoints every few epochs, and logging can generate hundreds of gigabytes of writes in a single day. This is exacerbated by a phenomenon known as Write Amplification Factor (WAF), where the actual amount of data written to the physical NAND flash is greater than the amount of data the host OS intended to write. According to JEDEC SSD endurance standards, this is a significant factor, where the WAF can range from 2-4 for typical client workloads and be even higher in enterprise scenarios.

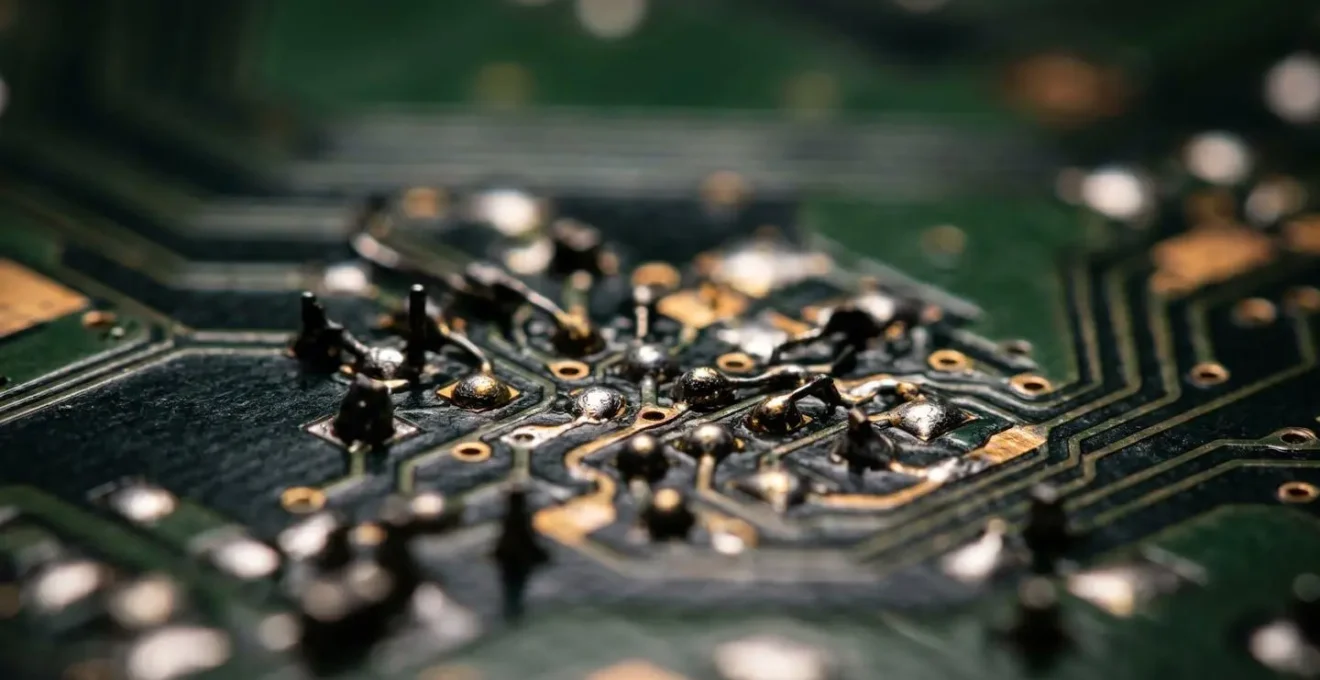

This macro view of an SSD’s internal structure hints at the physical wear that occurs with every write cycle, making endurance a tangible concern.

Therefore, when architecting a system for data safety, you must prioritize the TBW rating over the warranty years. A drive with a 5-year warranty but a 300 TBW rating is significantly less durable for data science than a drive with a 3-year warranty and a 1200 TBW rating. The warranty guarantees replacement if the drive fails within the period *and* below its TBW limit. For a researcher whose livelihood depends on the integrity of their data, choosing a drive with a high TBW rating is a critical investment in the long-term stability and reliability of their workstation.

6 Cores vs 12 Cores: Do Streamers Really Need the Extra Silicon Power?

While the title references streamers, the underlying question is universal for any power user, including data scientists: when does investing in more CPU cores yield diminishing returns? The temptation to opt for a 12-core or 16-core CPU is strong, driven by the belief that “more is always better.” However, from an architectural standpoint, this is often a misallocation of a limited budget. For the vast majority of deep learning workloads, the CPU’s primary job is not to perform the heavy computation, but to prepare and feed data to the GPU. This is a task that does not scale linearly with core count.

This principle is a cornerstone of building a balanced system. As the experts at Puget Systems, who specialize in professional workstations, succinctly put it:

For most GPU-bound ML tasks, the CPU is just ‘feeding the beast’. Show that once you have a modern 6 or 8-core CPU, the money for a 12-core upgrade is almost always better spent on more RAM or a better GPU.

– Puget Systems, Hardware Recommendations for Data Science

This is the essence of architectural balance. The performance of the entire system is limited by its most significant bottleneck. In GPU-accelerated machine learning, that bottleneck is almost always the GPU itself. Once you have a modern CPU with sufficient single-thread performance and 6 to 8 strong cores to handle data loading, OS overhead, and other background tasks, adding more cores provides little to no benefit for the training process. That extra $200-$300 spent on a 12-core CPU over an 8-core one would deliver a far greater performance uplift if invested in stepping up from 32GB to 64GB of RAM, or from an RTX 4070 to an RTX 4080.

Ultimately, building a workstation is an exercise in resource allocation. By understanding the principles of architectural balance, identifying the true bottlenecks in your workflow, and prioritizing stability through quality power delivery and software hygiene, you can construct a home research machine that is far more powerful and productive than one built by simply chasing the highest numbers on a spec sheet. Begin architecting your workstation with these principles to ensure a stable and productive research environment.
