FTTH vs FTTN: Why Your “Fiber” Connection Still Buffers at Night?

You pay a premium for a “gigabit fiber” plan. You’ve bought the expensive router. Yet, every night around 7 PM, your 4K stream starts to pixelate, and your online game lags. The common advice is to restart your router, check your Wi-Fi, or kick other devices off the network. But these are surface-level fixes for a much deeper problem. The truth is, not all “fiber” is created equal, and the performance gap is not a software issue—it’s a physical one, rooted in the very architecture of the network reaching your home.

The term “fiber” is used loosely by marketers. It can mean a pure, end-to-end glass strand running directly into your house (Fiber-to-the-Home, or FTTH), or it can mean fiber running to a box down the street, with the final connection to your home completed over old copper telephone wires (Fiber-to-the-Node, or FTTN). This single distinction is the source of immense frustration for consumers who believe they are paying for one thing and receiving another. The buffering and slowdowns aren’t a sign that the internet is “busy”; they’re a symptom of physical limitations, from shared bandwidth at the neighborhood node to something as simple as a kink in a cable inside your own wall.

This article moves beyond the generic advice. As a network technician, I’m going to pull back the curtain on the physical layer of your internet connection. We will dissect the engineering realities that dictate your actual speed, explaining why a 90-degree bend can kill a light signal, how to diagnose where a break is located, and why that “neighborhood node” is your connection’s biggest bottleneck. By understanding the hardware, you can finally diagnose the real reason your premium internet plan feels like dial-up during primetime.

This guide breaks down the technical reasons behind your internet slowdowns, giving you the knowledge to identify the real bottleneck in your home network.

Why a 90-Degree Bend in Your Fiber Cable Kills Your Internet Speed?

A fiber optic cable is not like a copper wire; it’s a waveguide for light. Your data travels as pulses of light down a glass core thinner than a human hair. This process relies on a principle called Total Internal Reflection (TIR). The light bounces off the inside walls of the glass core, contained by a layer of cladding, allowing it to travel for miles with minimal signal loss. However, this entire system depends on the angle of reflection. When you bend the cable too sharply, you change that angle.

If the bend is too acute—creating what technicians call a “macro-bend”—the angle of incidence becomes too steep for TIR to occur. Instead of reflecting back into the core, the light escapes through the cladding. This leakage of light is a direct loss of data, leading to a degraded signal, increased errors (packet loss), and ultimately, slower speeds or a complete connection failure. The industry has strict standards to prevent this; a fiber cable’s bend radius should be no less than 10 to 20 times its diameter to maintain signal integrity.

This is not a theoretical problem. It’s a common issue found in homes where cables are stapled tightly to baseboards, crammed into wall outlets at sharp angles, or bent around tight corners in a utility closet. A single, sharp 90-degree bend can be the sole reason your gigabit connection performs poorly, as it physically chokes the flow of data. Before blaming your ISP, a careful inspection of the visible fiber path in your home for these tight bends is a critical first step. This is confirmed by industry standards, which stipulate a minimum bend radius of 10 times the cable diameter after installation to prevent this exact type of signal degradation.

How to Identify if the Break Is in Your House or at the Street Node?

When your internet goes down, the first question is always “Is it my problem or theirs?” With fiber optics, you can often answer this yourself by looking at the lights on your Optical Network Terminal (ONT). The ONT is the box that converts the light signal from the fiber optic cable into an electrical signal for your router. It’s the demarcation point between your home network and your ISP’s network, and its diagnostic lights are your first clue.

A solid green “PON” (Passive Optical Network) or “Optical” light is the most important indicator. It confirms your ONT is receiving a stable light signal from the street. If that light is off, blinking, or red, it strongly suggests a physical problem with the fiber line itself—either a break, a disconnect at the node, or a major network outage on the ISP’s end. Conversely, if the PON light is green but your “LAN” or “Ethernet” light is off, the problem lies in the connection between your ONT and your router. This simple check can save you a frustrating call to support, as it helps isolate the fault to either inside or outside your property. These issues can be surprisingly mundane; a significant 28% of fiber outages are caused by animals chewing cables, a problem that would manifest as a red or off PON light.

To systematically troubleshoot, you need to interpret the language of these indicator lights. The following checklist provides a step-by-step diagnostic process to determine if the fault is within your control or requires an ISP technician.

Symmetrical vs Asymmetrical: Do You Really Need 1Gbps Upload Speed?

Internet service plans are typically advertised by their download speed—the “1 Gbps” you signed up for. However, there is a second, equally important number: upload speed. The relationship between these two defines your connection as either symmetrical or asymmetrical. A symmetrical connection, characteristic of true FTTH, offers the same speed for uploads and downloads (e.g., 1 Gbps down, 1 Gbps up). An asymmetrical connection, typical of FTTN and cable internet, has a much lower upload speed (e.g., 1 Gbps down, 35 Mbps up).

For years, asymmetrical speeds were fine for most users. Browsing websites, streaming video, and downloading games are all download-heavy activities. But the modern internet is a two-way street. Video conferencing, cloud backups, uploading large files to Dropbox, live streaming on Twitch, and even competitive online gaming all depend heavily on your upload bandwidth. A slow upload speed is why your face freezes on a Zoom call while everyone else looks fine, or why your game registers your actions a split-second too late. The difference is stark; median asymmetrical connections in the US showed 193 Mbps download versus just 22.5 Mbps upload in late 2022—a ratio of nearly 9:1.

So, do you really need 1 Gbps upload speed? If your internet usage is limited to passive consumption like streaming and browsing, perhaps not. But if you are a content creator, a remote worker reliant on cloud services, a serious gamer, or live in a household with multiple users video conferencing simultaneously, a symmetrical connection is no longer a luxury. It’s a fundamental requirement for a smooth, modern internet experience.

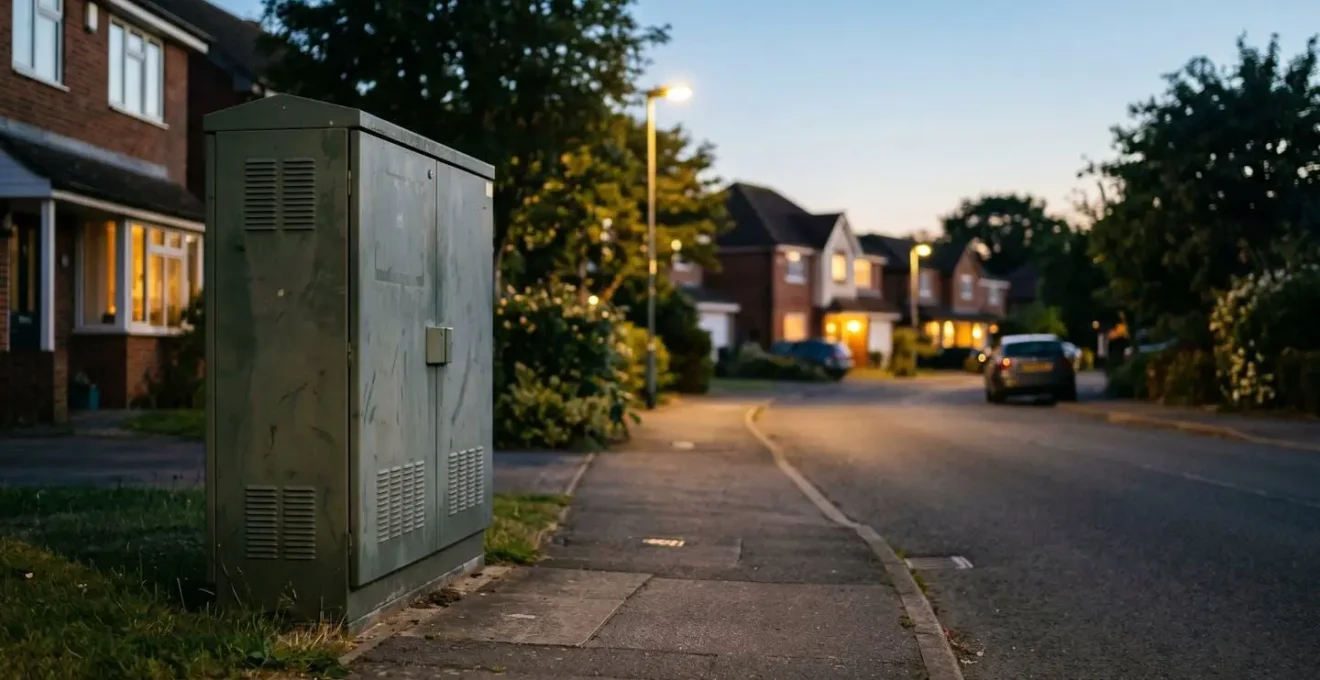

The “Neighborhood Node” Factor That Slows Down Your Gigabit Connection

The biggest myth about fiber is that it’s a dedicated, personal line straight to the internet’s backbone. This is rarely the case. Whether you have FTTN or FTTH, your connection is part of a Passive Optical Network (PON). This means your home is one of many that connect to a local distribution point, or “node,” which then connects to the wider ISP network. The bandwidth at that node is shared among all the homes connected to it, a practice known as oversubscription.

This is where your evening slowdowns originate. In a typical GPON (Gigabit Passive Optical Network) architecture, a single 2.4 Gbps fiber line from the central office is split to serve up to 32 or even 64 homes. While that sounds like a lot of bandwidth, it’s not hard to see how it gets consumed. If a dozen of your neighbors all start streaming 4K movies (25 Mbps each), another few start large game downloads (100+ Mbps), and others are on video calls (5-10 Mbps), that shared 2.4 Gbps capacity can be quickly saturated. Your “gigabit” plan is a promise of your maximum possible speed, not a guaranteed, dedicated speed. You’re competing with your neighbors for a finite pool of resources.

This is a vast improvement over older cable networks, which historically had oversubscription ratios of 200:1 or higher, causing massive slowdowns. However, the principle remains the same. The performance of your connection is directly tied to the usage patterns of your immediate neighbors. FTTN is even more susceptible, as the final copper leg has its own capacity limits on top of the shared fiber bandwidth. A key data point from an analysis of GPON architecture shows that up to 32 homes often share 2.4 Gbps of total bandwidth from a single node, which is the technical root of peak-hour congestion.

Where to Place Your Fiber ONT to Minimize Ethernet Cable Runs?

When an ISP technician installs your fiber service, their primary goal is to get a connection working as quickly as possible. This often means placing the Optical Network Terminal (ONT) in the most convenient location for them, such as a garage corner or basement wall where the fiber enters the house. While expedient, this is often the worst possible location for your home network’s performance. The ONT is the heart of your wired network, and its placement dictates the entire topology of your home’s connectivity.

The ideal location for an ONT is a centralized, climate-controlled utility area inside your home’s main living space. Placing the ONT in a garage or unfinished basement exposes it to extreme temperatures and humidity, which can shorten the life of the electronics. More importantly, a poorly placed ONT forces you into one of two bad compromises: running a very long Ethernet cable to your centrally-located router (which can be messy and susceptible to damage) or placing your router right next to the ONT in the corner of your house, resulting in poor Wi-Fi coverage for the rest of the home.

This poor Wi-Fi coverage often leads people to buy mesh network systems, which introduce their own performance compromises (like backhaul latency) to solve a problem that could have been avoided with better initial planning. The professional approach is to treat network wiring like any other utility.

Wireless vs Wired Backhaul: How Much Speed Do You Lose Without Ethernet?

Mesh Wi-Fi systems are a popular solution for large homes with dead zones, but their performance is dictated by a crucial, often overlooked component: the backhaul. The backhaul is the dedicated link that the mesh nodes (satellites) use to communicate with the main router and with each other. This link can be either wired (using an Ethernet cable) or wireless. The choice between the two has a dramatic impact on the speed you actually receive at your device.

When you use a wired backhaul, you connect each satellite node to your main router via an Ethernet cable. This creates a stable, full-speed data highway for the mesh system. The full bandwidth of your internet connection is delivered to the satellite, and the satellite’s Wi-Fi radios are fully dedicated to communicating with your devices (laptops, phones, etc.). On a 1 Gbps fiber connection, a device connected to a satellite with a wired backhaul can realistically achieve speeds of 940 Mbps or more.

In contrast, a wireless backhaul uses a portion of the available Wi-Fi spectrum to create the link between nodes. This is more convenient, as it requires no new wiring, but it comes at a significant performance cost. The Wi-Fi band used for the backhaul is now congested with both inter-node traffic and device traffic, and every “hop” the signal makes from one node to another introduces latency and reduces throughput. Even in best-case scenarios with high-end mesh systems, you can expect a speed loss of 50% or more when using a wireless backhaul. That 1 Gbps fiber connection might only deliver 400-500 Mbps to a device connected to a satellite node. This is the fundamental trade-off of most consumer mesh systems: convenience for performance.

The Packet Loss Spike That Kills Your Rank Despite High Download Speeds

In the world of online gaming and real-time communication like VoIP, raw download speed is a vanity metric. A player with a stable 100 Mbps connection will consistently beat a player with a “gigabit” connection that’s unstable. The metric that truly matters for these applications is packet loss. Data on the internet is sent in small chunks called packets. Packet loss occurs when some of these packets fail to reach their destination and need to be resent, causing stutter, lag, and “rubber-banding” in games.

This is one of the most significant, yet least understood, differences between FTTH and FTTN. A true Fiber-to-the-Home connection is a continuous strand of glass, a medium that is almost completely immune to the electromagnetic interference (EMI) that plagues copper wiring. Signals from power lines, faulty appliances, or even water getting into a junction box have no effect on the light signal in a fiber cable. This results in an incredibly stable connection with near-zero packet loss.

FTTN, however, relies on a copper telephone line for the “last mile” from the neighborhood node to your house. This copper segment is highly susceptible to all forms of environmental interference. Water infiltration, corrosion at connection points, or electrical noise from nearby equipment can all corrupt the data signal. This corruption doesn’t necessarily lower your top download speed—a speed test might still show impressive numbers—but it introduces intermittent packet loss. Your computer or game console must constantly request re-transmissions of lost data, creating the lag spikes that get you eliminated in a competitive match or make a video call unwatchable.

Tri-Band vs Dual-Band Mesh: Is the Dedicated Backhaul Worth the Extra $200?

When choosing a mesh Wi-Fi system to cover your home, the most significant technical decision is between a dual-band and a tri-band system. A dual-band system operates on two frequency bands (typically 2.4 GHz and 5 GHz). In a wireless setup, it must use these same bands for both communicating with your devices (the “fronthaul”) and for the nodes to communicate with each other (the “backhaul”). This creates congestion and is a primary reason for the 50%+ speed loss seen in wireless backhaul setups.

A tri-band system adds a third, additional 5 GHz band. Its key advantage is the ability to dedicate this entire band exclusively for use as a high-speed, wireless backhaul highway between the nodes. The other two bands are left completely free to service your devices. This is the closest you can get to the performance of a wired Ethernet backhaul without running cables. It dramatically reduces congestion and latency, allowing the system to deliver a much higher percentage of your internet speed to the far corners of your home.

The main barrier is cost. A tri-band mesh system can easily cost $200 or more than its dual-band equivalent. Is it worth it? The answer depends entirely on your internet speed and expectations. If you have a slower plan (e.g., 100-300 Mbps), a dual-band system is often sufficient. The bottleneck is your internet connection itself, not the mesh backhaul. However, if you are paying for a high-speed gigabit FTTH connection, a dual-band system will actively prevent you from using that speed. You are paying for a sports car but driving it on a congested city street. In this scenario, the tri-band system is not a luxury; it’s a necessary component to unlock the performance you’re already paying for. When you break down the cost, a $200 premium amortized over a typical 3-year lifespan comes to about $5.50 per month—a small price to pay to double or triple the usable speed in parts of your home.

Ultimately, a high-performance home network is a system of components. By understanding the physical realities of your connection type, the impact of shared bandwidth, and the critical role of your in-home wiring, you can move from being a frustrated consumer to an informed owner of your digital infrastructure. The next logical step is to audit your own home against these principles to build a faster, more reliable network.
