20,000mAh vs. 10,000mAh: A Risk Management Guide to Power Banks for Air Travel

The familiar sight of travelers tethered to airport outlets is a modern travel staple. To combat this, the portable power bank has become an essential carry-on item. The common advice is often simplistic: get a 10,000mAh for light use, and a 20,000mAh for more power. While the FAA and TSA have a clear-cut limit of 100Wh (Watt-hours) for lithium-ion batteries in carry-on luggage—which both 10,000mAh and 20,000mAh models typically fall under—this simple rule overlooks a much more complex reality for the frequent flyer.

The decision is not merely about capacity. It’s about weight, charging speed, device compatibility, and, most critically, safety and regulatory compliance. But what if the true key to power independence isn’t just choosing the biggest battery, but understanding the intricate logistics of your personal charging ecosystem? The ideal power bank is not just an accessory; it’s a calculated risk management tool. Choosing the right one requires a deeper understanding of its technical limitations, safety features, and how it integrates with all your devices, from your phone to your laptop.

This guide moves beyond simple capacity comparisons to provide a regulatory and practical framework. We will dissect the technical reasons for capacity loss, outline crucial safety protocols for storage and charging, demystify fast-charging standards, and analyze real-world use cases to help you make an informed, logistical decision for your travel needs.

Why Your 10,000mAh Power Bank Only Charges Your 4,000mAh Phone Twice?

This common point of confusion for travelers stems from a fundamental misunderstanding of battery capacity ratings versus real-world output. The “10,000mAh” rating refers to the total capacity of the internal lithium-ion cells, which typically operate at a nominal voltage of 3.7V. However, your smartphone and other USB devices charge at 5V or higher. This discrepancy necessitates a voltage conversion process within the power bank’s circuitry.

This conversion is not 100% efficient. A significant portion of the stored energy, often between 30% and 35%, is lost as heat during this step-up process. Therefore, the actual, usable energy delivered to your device is much lower than the advertised number. A 10,000mAh power bank (37Wh) might only deliver around 6,500 to 7,000mAh at 5V. This explains why it can only charge a 4,000mAh phone roughly 1.5 to 1.75 times, not the 2.5 times one might mathematically expect. For a frequent flyer, this means a 10,000mAh unit might not suffice for a long-haul flight with multiple devices, forcing a practical upgrade to a 20,000mAh model to guarantee true power independence.

How to Store Lithium Batteries to Prevent Swelling During Non-Use?

A swollen power bank is more than a cosmetic issue; it’s a critical failure indicator of the internal lithium-ion cells and a significant fire hazard. Swelling occurs when the electrolyte inside the battery decomposes, generating gas. This is often caused by overcharging, physical damage, or, most commonly for travelers, improper storage in high-temperature environments or at a full state of charge for extended periods.

For frequent flyers, who may have periods of non-use between trips, proper storage is paramount for both safety and longevity. The primary goal is to minimize the chemical stress on the battery cells. Storing a power bank in a car, for example, where temperatures can soar, dramatically accelerates this degradation process. Likewise, leaving it fully charged or completely depleted for weeks on end creates an unstable chemical state that promotes gas generation. A visual and tactile inspection before each trip is a mandatory safety check.

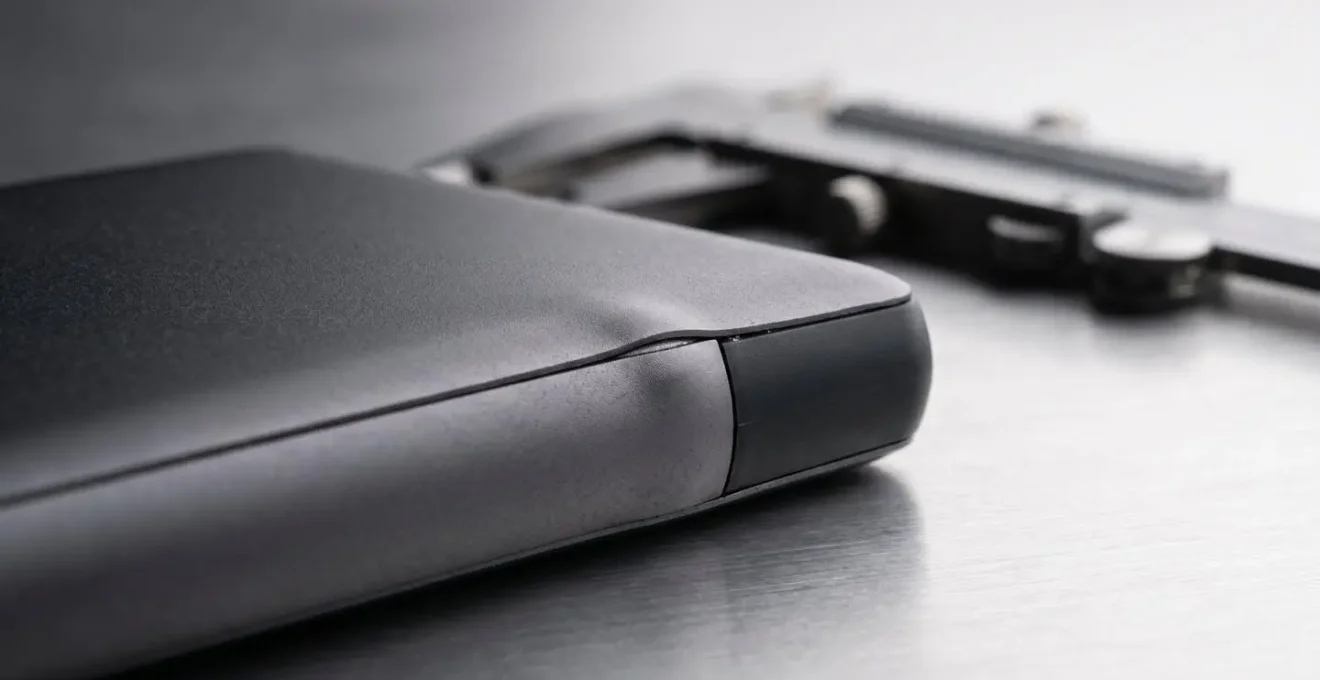

As the image above illustrates, you should check for any signs of bulging or seam separation by placing the device on a perfectly flat surface. Even a subtle, “spongy” feel when pressed is a red flag indicating internal pressure. A swollen battery should be immediately and safely disposed of according to local e-waste regulations and never taken on a flight.

PD vs QC: Which Fast Charging Standard Compatible with Your Laptop?

For the modern traveler, a power bank must do more than just charge a phone. The ability to power a laptop is a game-changer, but this capability hinges on understanding the two dominant fast-charging standards: USB Power Delivery (PD) and Qualcomm Quick Charge (QC). While both aim to charge devices faster, only one is a viable solution for most laptops. USB Power Delivery (PD) is the universal standard for charging larger devices like laptops. It’s built into the USB-C specification and can negotiate higher power levels, with PD 3.0 supporting up to 100W for laptops via PD 3.0—enough for most ultrabooks and even some more powerful machines.

Qualcomm Quick Charge, conversely, is a proprietary technology primarily found in Android smartphones with Snapdragon processors. While later versions like QC 5.0 can technically reach high wattages, its adoption in laptops is minimal. For a frequent flyer with a multi-brand ecosystem (e.g., a Dell laptop, an iPhone, and Sony headphones), a power bank with USB-C PD is the only logical choice for true universality. This is a critical purchasing decision, as a high-capacity QC-only power bank will be useless for keeping a MacBook or a business-class Windows laptop alive mid-flight.

The following comparison, based on a detailed technical analysis of charging standards, clarifies the key differences for a travel logistics expert.

The Fire Hazard Hidden Inside Non-Certified Cheap Power Banks

While a dead battery is an inconvenience, a power bank fire is a catastrophe, especially at 30,000 feet. The allure of cheap, unbranded power banks is strong, but they represent a significant and unacceptable risk for any traveler. These devices often cut corners in critical areas: they use lower-grade battery cells, lack proper insulation, and omit essential safety circuitry like temperature sensors and overcharge protection. This creates a perfect storm for thermal runaway—a dangerous chain reaction where an increase in temperature leads to a further increase, potentially resulting in fire or explosion.

The scale of the problem is significant; in the U.S. alone, over 1 million units have been recalled following 19 fire/explosion reports, according to CPSC data. To mitigate this risk, regulatory bodies and independent labs have established safety standards. The most important one for power banks is UL 2056. A power bank certified to this standard has undergone rigorous testing for electrical and fire safety, including overcharge, short-circuit, and impact tests. A frequent flyer must treat safety certification not as a feature, but as a mandatory requirement. Rejecting any product without clear, verifiable certification is the most important decision you can make.

To ensure your power bank is safe for travel, follow this verification process:

• Check for UL Marking: Look for a “Tested to UL 2056 standards” claim on the product or packaging. Be wary of counterfeit logos.
• Validate UL Status: For maximum assurance, search the product or manufacturer on the official UL Product iQ database.
• Inspect CE and FCC Marks: Ensure these electromagnetic compliance logos are present and appear legitimate.
• Verify Wh Rating: Confirm the Watt-hour (Wh) rating is clearly printed. A lack of a Wh rating (or only showing mAh without voltage) is a major red flag for air travel compliance.
• Price Reality Check: Be skeptical of prices that seem too good to be true. A genuine, certified 20,000mAh power bank will rarely cost less than $25-$50.

How to Charge Your Power Bank and Phone Simultaneously Without Overheating?

The ability to charge a power bank while it simultaneously charges another device is known as “pass-through charging.” For a traveler looking to economize on outlet time in a hotel or airport lounge, this feature seems incredibly efficient. However, it’s an operation that places immense thermal strain on the power bank’s internal components. As one battery management system analysis notes, “Pass-through charging is the most thermally stressful operation for a power bank.”

During this process, the charging circuit must manage incoming power from the wall, direct some of it to the connected device, and use the rest to charge its own internal battery. This juggling act generates a significant amount of heat in a concentrated area. In poorly designed, non-certified power banks, this can lead to dangerous overheating, which accelerates battery degradation and increases the risk of fire. Even in high-quality units, frequent pass-through charging will shorten the device’s overall lifespan.

The safest practice is to avoid pass-through charging when possible. If it’s necessary, take steps to manage heat: charge on a hard, flat surface (not on a bed or sofa), ensure adequate ventilation, and use a high-quality, certified wall adapter and cables. A 20,000mAh model, with its larger surface area and potentially more robust thermal management system, may handle this stress better than a compact 10,000mAh unit, but the fundamental risk remains. The most efficient and safest logistical approach is to use a multi-port wall charger to power your devices and power bank separately and concurrently.

How to Replace a Built-In Battery Without Damaging Ribbon Cables?

While replacing a built-in battery in a power bank or smartphone is an advanced task not recommended for most travelers, understanding the procedure provides critical insight into the delicate construction of modern electronics. The single most common point of failure during such a repair is damage to the fragile ribbon cables that connect components like the battery, screen, and charging port to the main logic board. These flat, flexible cables contain microscopic copper traces that are easily fractured.

Damage often occurs from using improper tools (metal instead of plastic spudgers), pulling on the cable before releasing its connector, or folding the cable too sharply. There are two primary types of connectors: ZIF (Zero Insertion Force), which have a small latch that must be flipped up, and friction-fit connectors, which require careful, even wiggling to disconnect. Misidentifying the connector type and applying brute force is the fastest way to permanently damage a device. An experienced technician works with precision, patience, and a deep understanding of these fragile connections.

For the frequent flyer, this knowledge serves as a stark reminder of the delicate nature of their equipment. The following golden rules, used by professionals, highlight the care required:

• Never Fold: Ribbon cables are designed to flex, not fold. A sharp crease will break the internal traces.
• Use Plastic Tools: Only use plastic spudgers or picks to pry connectors. Metal tools can cause short circuits or puncture components.
• Identify the Connector First: Before applying any force, identify if it’s a ZIF latch or a friction-fit connector.
• Release the Latch: For ZIF connectors, always flip the latch to the open position before attempting to remove the cable.
• Work in a Well-Lit Area: Proper visibility is essential to see connector orientation and avoid forcing connections at the wrong angle.

100% vs 50%: What Charge Level Is Best for Long-Term Device Storage?

A common mistake travelers make is storing their power banks either fully charged (100%) or completely empty (0%) between trips. Both extremes are detrimental to the long-term health of lithium-ion batteries. The optimal state of charge (SoC) for storage is widely recognized to be in the middle range. Extensive testing and lithium battery storage best practices recommend a 30-50% SoC for any storage period longer than a few weeks.

The reasoning is chemical. A battery at 100% charge is in a high-energy, high-stress state. As noted by experts in the field, this condition has a direct impact on the battery’s internal components.

Storing batteries for extended periods at full charge or extremely low charge accelerates side reactions, with the positive electrode remaining in a high-energy state at high SOC, promoting electrolyte oxidation.

– Atomfair Battery Research, Lithium Battery Swelling: Causes, Risks, and Prevention

This oxidation degrades the battery’s ability to hold a charge and can lead to the gas generation that causes swelling. Conversely, storing a battery at 0% risks over-discharging it, where the voltage drops below a safe minimum, potentially rendering it unable to ever hold a charge again. For a frequent flyer, the practical application is clear: after a trip, run the power bank down or charge it up to roughly two indicator lights (around 40-50%) before putting it away. This simple logistical step can dramatically extend its usable life and ensure it’s reliable for your next journey.

Ultrabook vs Gaming Laptop: Which Compromise Hurts Less for Engineering Students?

While seemingly a niche comparison, the choice between an ultrabook and a gaming laptop for an engineering student who is also a frequent traveler provides the ultimate stress test for a travel power bank strategy. This user has extreme needs at both ends of the spectrum: the portability and long battery life of an ultrabook for classes and travel, and the immense processing power of a gaming laptop’s dedicated GPU for running complex CAD or simulation software. Both choices involve a significant compromise that a power bank can only partially mitigate.

An ultrabook (like a Dell XPS or MacBook Air) is the clear winner for travel logistics. It’s light, and its low power consumption (15-45W) means a 20,000mAh (approx. 74Wh) power bank can provide a full day of extended use. A gaming laptop, however, is a power-hungry beast, consuming 100-180W or more. Even the largest airline-approved power bank (around 27,000mAh or 99.9Wh) can only power it for an hour or two at most, effectively acting as a short-term buffer between wall outlets rather than a true mobile power source. It becomes a compromise of being tethered to a wall versus being tethered to a heavy power bank for minimal gain.

This analysis, based on a comparison of laptop power requirements, shows that for a true road warrior, the ultrabook’s efficiency is the less painful compromise, as it allows a power bank to be a genuinely effective tool for all-day power independence.

To ensure complete power independence, you must evaluate your travel devices not as separate items, but as an interconnected ecosystem. By applying these principles of efficiency, safety, and protocol compatibility, you can move from simply carrying a battery to strategically managing your power resources. The next logical step is to audit your own carry-on, identify your total wattage needs, and select a certified power bank that serves as a reliable cornerstone of your travel logistics.
