Fresnel vs Pancake Lenses: Is the Clarity Upgrade Worth the Price Hike?
Upgrading to Pancake lenses is about far more than just eliminating “god rays”; it’s a systemic shock that exposes every other bottleneck in your VR setup.
- The edge-to-edge clarity of Pancake lenses reveals compression artifacts and low-resolution textures that Fresnel’s blurry periphery used to hide.
- This “clarity tax” demands more from your GPU’s VRAM, your Wi-Fi network’s bandwidth, and even the processing power needed for latency correction.
Recommendation: Evaluate the cost of the headset not in isolation, but as the first step in a potential chain of upgrades to your PC and network needed to fully unlock its potential.
As a VR enthusiast, you’ve likely felt the pull. You love your current headset, perhaps a venerable Quest 2, but the buzz around newer models with Pancake lenses is undeniable. The promise is a visual revelation: an end to the frustratingly small “sweet spot,” the distracting “god rays” shooting out from bright objects, and the general softness around the edges of your vision. The marketing paints a simple picture: pay more, see better. But if you’re wondering whether that clarity upgrade is truly worth the significant price hike, the real answer is far more complex.

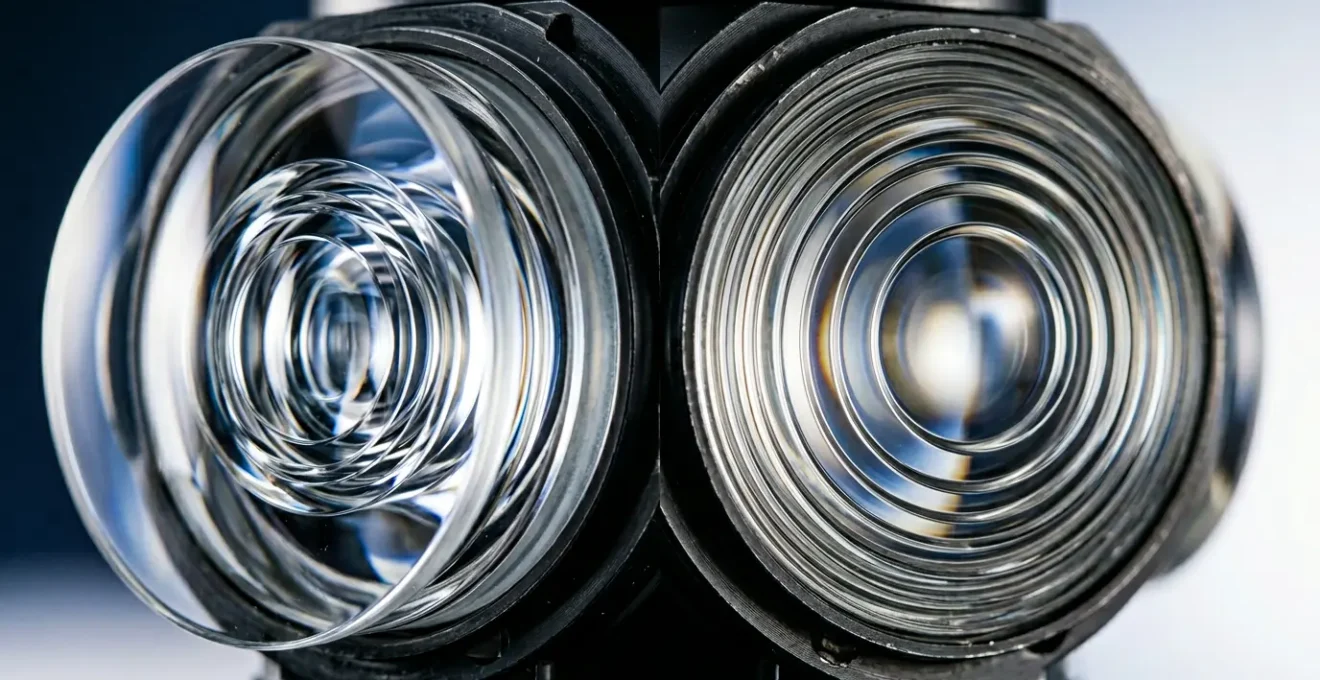

The transition from Fresnel to Pancake optics isn’t a simple component swap. It’s a fundamental shift that acts like a high-powered magnifying glass on your entire VR ecosystem. That newfound edge-to-edge sharpness doesn’t just improve what you see; it mercilessly exposes weaknesses you never knew you had. Suddenly, the slight compression from your Wi-Fi link becomes a smeary mess, the VRAM limitations of your GPU are laid bare as muddy textures, and the very physics of balance and latency are redefined. This isn’t just an upgrade; it’s a new standard that demands more from everything it’s connected to.
This guide delves into that systemic ripple effect. We will move beyond the surface-level talking points and analyze how the move to Pancake lenses impacts everything from the nausea-inducing subtleties of latency to the physical strain on your neck. We’ll explore the hidden “clarity tax” on your hardware and network, giving you the full picture to decide if this expensive leap forward is the right move for you right now.
Contents: Beyond Clarity: The Systemic Impact of a Lens Upgrade
- Why Latency Below 90Hz Triggers Nausea in 40% of Users?
- How to Modify Your Head Strap to Stop Neck Strain During Long Sessions?
- Inside-Out vs Base Stations: Which Tracking Doesn’t Lose Your Hands Behind Your Back?
- The “Muddy Visuals” Artifacts caused by Wi-Fi Streaming to VR Headsets
- How to Configure Guardian Boundaries to Avoid Punching Your TV?
- Why 8GB of VRAM Is No Longer Enough for 1440p Gaming?
- Why 144Hz Won’t Fix Your Reaction Time If Your Input Lag Is High?
- HUD Utility vs Social Stigma: Will You Look Like a “Glasshole” in Public?
Why Latency Below 90Hz Triggers Nausea in 40% of Users?
The “90Hz or bust” rule in VR isn’t arbitrary; it’s a hard-won lesson in human physiology. When the image on your screen fails to keep up with your head’s movement, a sensory mismatch occurs between your eyes and your inner ear. This disconnect is a primary trigger for VR sickness. The industry standard of 90Hz provides a crucial buffer, ensuring that the time between your movement and the screen’s update—the motion-to-photon latency—stays below a critical threshold. To achieve this, the total delay must be minimal, with extensive VR latency research showing a target of 13 milliseconds at 90Hz.
Interestingly, the choice of lens technology directly impacts this delicate latency budget. Older Fresnel lenses, while optically simpler in some ways, come with their own hidden processing costs. They introduce a “pincushion” distortion that must be corrected by the software in real-time. This correction process, which stretches the image at the corners to make it appear normal, consumes valuable processing cycles.
The Hidden Latency of Fresnel Distortion
Fresnel lenses aren’t a “free” solution from a processing standpoint. They require a constant, real-time software correction to counteract their inherent pincushion distortion. This process consumes GPU power that could otherwise be used to maintain a higher or more stable framerate. Every microsecond spent on distortion correction is a microsecond added to the rendering pipeline, chipping away at the precious latency budget needed to prevent nausea. This is a systemic bottleneck that Pancake lenses, despite their own complexities, are designed to avoid at the software level.
While Pancake lenses require more complex manufacturing, they produce a more uniform image that doesn’t need the same aggressive software-side distortion correction. This frees up processing power, but as we’ll see, it shifts the performance demand to other parts of the system. The pursuit of low latency is a constant battle of trade-offs, and the lens is a critical, often underestimated, variable in that equation.
How to Modify Your Head Strap to Stop Neck Strain During Long Sessions?
If you’ve ever ended a long VR session with a sore neck, you’ve experienced the ergonomic consequences of a front-heavy headset. The constant forward pull forces your neck muscles to work overtime simply to keep your head level. This isn’t just a feeling; research on ergonomic impacts reveals a 25.9% increase in neck extensor muscle use when wearing a typical VR headset. The fundamental problem is one of leverage: the further the center of gravity is from your face, the more torque it exerts on your neck.

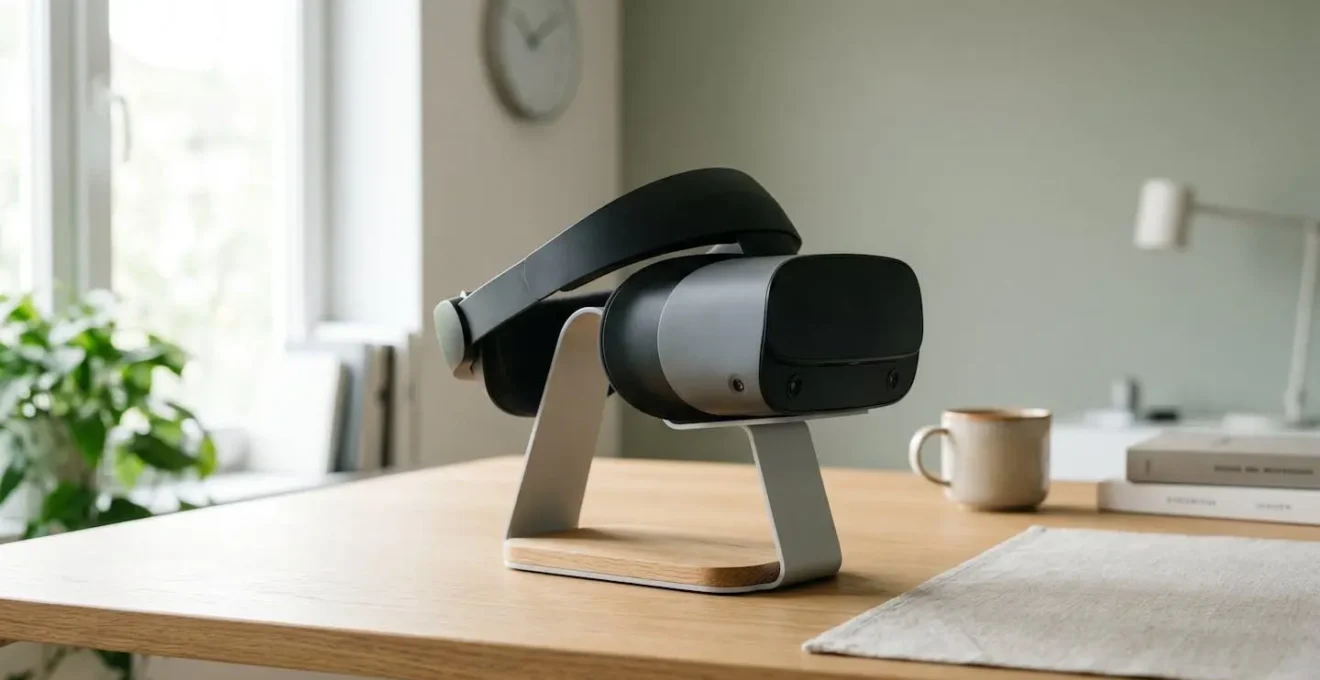

As the image above illustrates, the key to comfort is balance. While many third-party straps for headsets like the Quest 2 try to solve this by adding a counterweight at the back, Pancake lenses tackle the problem at its source. Their “folded” optical path allows them to be much thinner than Fresnel lenses, dramatically reducing the distance between the display and your eyes. This pulls the headset’s center of gravity closer to your face, reducing the leverage and the resulting strain. This is the ergonomic dividend of the new technology.
Pancake Lenses and the Center of Gravity Advantage
The compact form factor enabled by Pancake lenses directly translates to improved user comfort by shifting the center of mass closer to the head. Studies have shown that balancing a headset’s weight, rather than just reducing it, is key to minimizing physical load and fatigue. By their very design, Pancake-based headsets like the Quest 3 achieve a better intrinsic balance than their bulkier Fresnel-based predecessors, which often feel like a pair of binoculars strapped to your face. This design change significantly reduces the torque at the neck joint, a benefit especially noticeable during extended play sessions.
So, while modifying your head strap with counterweights is a valid strategy for older headsets, upgrading to a Pancake-lens headset offers a more fundamental solution. It’s not just about seeing better; it’s about being able to play longer without the physical reminder of a poorly balanced weight hanging off your face.
Inside-Out vs Base Stations: Which Tracking Doesn’t Lose Your Hands Behind Your Back?
A VR system’s immersion is only as good as its tracking. The moment the system loses sight of your hands, the illusion shatters. The debate between tracking methodologies—inside-out versus outside-in—is central to this. Inside-out tracking, used by standalone headsets like the Quest series, places cameras on the headset itself to map the room and track the controllers. Outside-in tracking, typified by Valve Index’s Base Stations, uses external sensors to flood the room with infrared light, which is then detected by the headset and controllers. Each has profound implications for convenience, cost, and most importantly, reliability.
Inside-out is the champion of convenience. You can take your headset anywhere, turn it on, and be playing in minutes. There are no external sensors to mount or cables to run. However, this convenience comes with a critical trade-off: line of sight. Because the tracking cameras are on your head, they can’t see what’s happening directly behind you, below your chin, or too close to the headset. When you reach back to grab an arrow from a quiver or swing a sword in a wide arc, you risk the cameras losing sight of the controller’s tracking rings, causing your virtual hand to float away or freeze. While modern algorithms have become incredibly good at predicting hand positions during these brief moments of occlusion, it remains a fundamental limitation.
Base Stations, on the other hand, offer the gold standard for robust, 360-degree tracking. By placing two sensors in opposite corners of your room, you create a play space where the controllers are almost always visible to at least one station. This virtually eliminates occlusion issues, providing sub-millimeter precision that is essential for high-stakes competitive games or professional applications. The downside is significant setup complexity, a higher cost, and a system that is tied to a single, dedicated room.
The following table breaks down the core differences, which remain relevant regardless of the lens technology inside the headset.
| Tracking Method | Setup Complexity | Accuracy | Occlusion Handling | Portability |
|---|---|---|---|---|
| Inside-Out (SLAM) | Plug-and-play, no external hardware | Good, improving with AI algorithms | Loses tracking when hands move outside camera FOV | Excellent – use anywhere |
| Outside-In (Base Stations) | Requires wall-mounted sensors, room calibration | Higher precision, lower latency | Better 360° coverage, minimal dead zones | Limited – dedicated space required |
The “Muddy Visuals” Artifacts caused by Wi-Fi Streaming to VR Headsets
For PC VR enthusiasts using a standalone headset, wireless streaming via technologies like Air Link or Virtual Desktop is a game-changer. It offers the freedom of untethered play with the graphical power of a gaming PC. However, this freedom comes at a cost: compression. Your PC must encode the video stream in real-time, send it over your Wi-Fi network, and have the headset decode it. Any bottleneck in this chain results in visual artifacts that users commonly describe as “muddy,” “blurry,” or “blocky,” especially during fast motion.
This is where Pancake lenses introduce the “Clarity Tax.” The blurry periphery of older Fresnel lenses was surprisingly forgiving; it effectively masked many of the subtle compression artifacts happening on the edges of the frame. You simply couldn’t see them clearly. But with the edge-to-edge sharpness of Pancake lenses, there’s nowhere for these imperfections to hide. The same level of compression that was acceptable on a Quest 2 can look noticeably worse on a Quest 3, not because the compression is different, but because your ability to perceive its flaws has dramatically improved. This is optical unmasking in action.
To combat this, you need to throw more data at the problem, which means a higher bitrate. Higher bitrates reduce compression artifacts but place a much greater demand on your network. While you might get away with 100-150 Mbps on a Fresnel headset, VR streaming optimization tests show that 200-300 Mbps is a better minimum for Pancake clarity, with optimal results requiring even more. This forces an upgrade path not just for the headset, but potentially for your router (to Wi-Fi 6E) and your PC’s Ethernet connection to ensure a stable, high-bandwidth link.
Checklist: Diagnosing the Source of Muddy VR Visuals
- Test with a wired USB-C link connection. If the visuals improve dramatically, the issue is definitively with your wireless compression or bandwidth, not the headset’s lenses.
- Incrementally increase the streaming bitrate in your software (e.g., Virtual Desktop) from a low value like 10 Mbps to over 200 Mbps. This helps you find the point where compression artifacts become unnoticeable, isolating network limitations from optical issues.
- Check your encoder codec. Experiment with H.264, HEVC (H.265), and AV1 (if your GPU supports it), as Pancake lenses are so clear they can reveal codec-specific artifacts that were previously invisible.
- Monitor your Wi-Fi signal. Use a Wi-Fi analyzer app to ensure you’re on a clean, dedicated 5GHz or 6GHz channel, with the router positioned as close as possible to your play area to eliminate network bottlenecks.
- Compare static and dynamic scenes. Compression artifacts are most visible in high-motion content. If even static menus or text look blurry, the problem might be an incorrect IPD setting or a dirty lens, not compression.
How to Configure Guardian Boundaries to Avoid Punching Your TV?
The Guardian system is one of VR’s most essential and underappreciated features. It’s the digital chaperone that keeps you from colliding with your physical reality. You draw a boundary, and the headset warns you when you get too close. On older headsets with grainy, black-and-white passthrough cameras, setting up and interacting with this boundary felt like a crude necessity—a jarring switch from your virtual world to a low-fidelity view of your real one. This often led users to draw lazy, overly generous boundaries just to get back into the game faster.
Modern headsets with Pancake lenses have transformed this experience, not because of the lenses themselves, but because the technology that enables them often comes packaged with other major upgrades, most notably high-fidelity color passthrough. As shown in the image, the ability to see your real-world environment in vivid, accurate color fundamentally changes your relationship with the Guardian system. It’s no longer a jarring interruption but a seamless layer of information integrated into your physical space.
This vastly improved spatial awareness makes you more confident and precise when setting up your play area. You can trace your boundaries tightly around obstacles like a coffee table or a TV stand, maximizing your usable space without sacrificing safety. The mental friction is gone. Need to grab a drink or check your phone? With color passthrough, you can do so without taking the headset off, making the transition between real and virtual worlds feel natural and effortless.
The Quest 3’s Passthrough Revolution
The Meta Quest 3 serves as a prime example of this evolution. Its combination of Pancake lenses and advanced full-color passthrough cameras delivers a mixed reality experience that was impossible on its Fresnel-based predecessor, the Quest 2. Interacting with the Guardian is no longer a chore. The system can intelligently map your room, and you can easily make micro-adjustments on the fly while seeing a clear, low-latency view of your surroundings. This tight integration of hardware and software reduces the setup friction and makes the entire VR experience feel safer and more intuitive, which is a major quality-of-life improvement.
Why 8GB of VRAM Is No Longer Enough for 1440p Gaming?
In the world of flat-screen gaming, the 8GB VRAM graphics card has long been the reliable workhorse for 1440p resolution. However, VR is a different beast with exponentially higher demands. A VR headset isn’t just one screen; it’s two, one for each eye, and they must be rendered at a high framerate to avoid nausea. More importantly, the advent of Pancake lenses has placed an even greater strain on VRAM, turning 8GB from a comfortable buffer into a potential bottleneck.
The reason lies in the principle of optical unmasking. With older Fresnel lenses, developers could get away with using lower-resolution textures or more aggressive Level of Detail (LOD) scaling in the periphery of your vision. The natural blurriness and distortion of the lens outside the small “sweet spot” would hide these compromises. Your brain simply couldn’t perceive the drop in quality. 8GB of VRAM was often sufficient because the full-resolution assets didn’t need to be loaded for the entire visible area.
Pancake lenses eliminate this “get out of jail free” card. Their edge-to-edge clarity means that every part of the rendered image is sharp and in focus. Any drop in texture quality or resolution, anywhere in your field of view, is immediately noticeable and immersion-breaking. To satisfy the demands of these new optics, a VR headset needs to be fed a consistently high-resolution image across the entire frame. This is the clarity tax at its most punishing, as analysis of modern VR headset demands shows a greater than 2K per eye resolution requirement to truly leverage Pancake optics.
The VRAM Demand of Full-Fidelity Rendering
The uniform sharpness of Pancake lenses means users can now spot VRAM-constrained texture swapping or low-resolution assets that were previously invisible. In modern VR titles, maintaining visual fidelity requires rendering at native resolutions that can exceed 2K x 2K per eye. When you factor in the need for a rendering buffer to correct for lens geometry (even with Pancake lenses), the total render target can be massive. An 8GB VRAM buffer, which has to store not just textures but also frame buffers and geometry data, fills up quickly under these conditions, forcing the system to stream assets from slower system RAM or an SSD, resulting in stuttering or blurry, low-resolution textures popping into view.
Why 144Hz Won’t Fix Your Reaction Time If Your Input Lag Is High?
A high refresh rate like 144Hz feels incredibly smooth, but it’s only one part of the motion clarity puzzle. The other, often overlooked, factor is display persistence. This is the amount of time a single frame remains illuminated on the screen. High persistence, even at a high refresh rate, causes motion blur, which can make tracking fast-moving objects difficult and can even contribute to a sense of sluggishness or high input lag. This is where the engineering trade-offs of Pancake lenses become particularly fascinating.
Pancake lenses are notoriously inefficient with light. Because the light has to bounce between several polarized and reflective surfaces, only about 10-25% of the display’s original light actually reaches your eye. To compensate for this and achieve the same perceived brightness as a Fresnel system, the display panels behind Pancake lenses need to be significantly brighter. Historically, brighter LCD panels often came with a penalty: slower pixel response times, which translates directly to higher display persistence. This created a difficult engineering choice: brightness or motion clarity?
The Brightness vs. Persistence Trade-Off
The challenge for headset manufacturers is to crank up the panel brightness to overcome the light-loss of Pancake optics without increasing pixel persistence. If persistence is too high, you get a blurry, smeared image during head movement, negating the benefits of a high refresh rate. Modern headsets like the Quest 3 have largely solved this with advanced panel technology (like dual-cell LCDs or faster-switching pixels), but it highlights a key systemic challenge. The choice of lens directly dictates the required specifications for the display panel in a way that goes far beyond simple resolution.
Furthermore, the clarity of Pancake lenses makes you more sensitive to the size of the “sweet spot”—the area of maximum sharpness. While a high refresh rate is nice, it’s the massive expansion of the clear visual area that has a more practical impact on gameplay. With detailed optical testing measurements revealing a 30-40 degree sweet spot for Fresnel vs 70-80 degrees for Pancake lenses, you can now track targets with your eyes across a much wider field of view without needing to turn your entire head. This ability to rely on your eyes more than your neck is a subtle but profound improvement to reaction time and overall comfort.
Key Takeaways
- Pancake lenses provide superior edge-to-edge clarity and ergonomics by design, reducing neck strain.
- This clarity acts as a “magnifying glass,” exposing bottlenecks in your PC (VRAM) and network (Wi-Fi bandwidth) that Fresnel lenses used to hide.
- The upgrade is not just the headset; it’s a systemic shift that may require further investment in your router or GPU to fully realize its benefits.
HUD Utility vs Social Stigma: Will You Look Like a “Glasshole” in Public?
The ultimate goal for many in the XR industry isn’t a bulky VR goggle, but a pair of sleek, socially acceptable glasses that can overlay digital information onto the real world. This is the promise of Augmented Reality (AR), and Pancake lenses are the critical bridge technology making it possible. The “ski goggle” form factor of traditional VR headsets is a direct result of Fresnel optics, which require a significant distance between the lens and the display to work correctly.
Pancake lenses, with their folded optical path, shatter this limitation. They can achieve the same level of magnification in a fraction of the physical space, enabling the creation of much smaller, lighter, and more compact headsets. We are already seeing the first generation of these devices, which sit in a new category between VR and true AR.
Pancake Optics as the Bridge to AR
Premium devices like the Apple Vision Pro, and more compact designs like the Pimax Dream Air and Shiftall MeganeX, are all built upon Pancake optics. They demonstrate a clear design lineage moving away from face-hugging goggles toward something more akin to sunglasses or ski visors. This miniaturization is the essential first step toward overcoming the social stigma associated with wearing a computer on your face. While they aren’t yet the discreet AR glasses of science fiction, they represent the crucial engineering pathway that will eventually lead to transparent waveguide displays and a truly wearable form factor. The journey from “Glasshole” to a genuinely useful public HUD begins with the compact foundation that Pancake lenses provide.
So, while the current debate is about immersion in virtual worlds, the underlying technology of Pancake lenses is simultaneously paving the way for our seamless interaction with the real world. The price hike you’re considering today isn’t just for a better gaming experience; it’s an investment in the form factor that will define the next decade of personal computing. The question of looking like a “glasshole” is being solved not by social acceptance, but by optical engineering that makes the technology increasingly invisible.
